Unlocking Potential: ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator

 Jump to the section that interests you

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator: ARINC 818, the transmission’s superhero, has come to save the day with its breakneck speed and unfailing dependability.

But hold on, our hero occasionally requires a slight makeover to fit into different media. The power of conversion kicks in at that point.

The avionics video systems standard, ARINC818, has transformed cockpit displays, head-up displays, and other technologies. However, there are instances when ARINC818 must change to other formats, such as DVI and HDMI.

Converting ARINC818 opens a world of opportunities, enabling interoperability with many systems, smooth integration with a huge variety of display devices, and even revealing the DVI, HDMI, and Video Protocol Analysis & Generation technologies’ untapped superpowers.

Additionally, it’s like assembling superheroes from several universes for a spectacular alliance.

The exciting process of converting ARINC 818 to DVI / HDMI & Vice-Versa and Video Protocol Analysis & Generation will be explained in detail in this post by your dependable companion.

For every transaction, we’ll give you step-by-step guidelines, insider knowledge, and mind-blowing insights.

So, buckle up because we’re about to set out on a thrilling conversion adventure with ARINC818 as our hero.

ARINC818

For uncompressed, high-bandwidth digital video transmission, ARINC818, a video interface and protocol standard, was developed.

The standard, which was released in January 2007, was pushed by ARINC and the aerospace industry to meet the stringent requirements of high-performance digital video.

Two important aircraft programs, the Boeing 787 and the Airbus A400M, have already adopted ARINC818, which is vying to become the de facto standard for high-performance military video systems.

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator

Despite its strength, ARINC818 occasionally needs to be modified to meet new requirements. New options become available when ARINC818 is converted to formats like DVI/HDMI.

Also, it needs to Generate and Analyze the ARINC818 Video to test and validate the ARINC818 systems.

It makes it possible to integrate with COTS equipment, work with a variety of systems, and access advanced capabilities.

It’s like giving ARINC818 a new design, enabling it to take on various tasks and make the most of each format’s strengths.

We’ll explore the fascinating world of ARINC818 conversion in the parts that follow, learning how to convert it to DVI/HDMI and Video Protocol Analysis & Generation. Prepare for an exciting protocol metamorphosis trip.

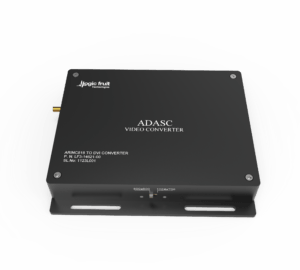

ARINC818 to DVI/HDMI Converter

The integration of aviation video systems with common consumer electronics now has a wide range of options thanks to the conversion of ARINC818 to DVI/HDMI

. The DVI (Digital Visual Interface)/HDMI (High-Definition Multimedia Interface) is a popular visual interface that may be used with a wide variety of monitors, TVs, projectors, and other display devices, which provides high-quality video transmission over a single cable.

Avionics systems and DVI/HDMI display devices may communicate and visualize data without interruption. Thanks to the conversion of ARINC 818 to DVI.

Consider an airplane having ARINC818 video output that requires a DVI/HDMI monitor to provide a dependable and clean visual display.

You can close the gap and guarantee compatibility between the two formats by using a specialist ARINC818 to DVI/HDMI conversion device.

Finding the ARINC818 output source and DVI/HDMI input display device, getting an appropriate converter device, and connecting the converter to both the ARINC818 output and the DVI/HDMI input are all steps in the conversion process.

As a result, communication between the avionics system and the DVI/HDMI display device is flawless.

A case study from the real world demonstrates how useful the conversion of ARINC818 to DVI/HDMI is for the aviation sector.

Consider a company that updates its ARINC818-based cockpit display system. The airline may link the new system to current DVI/HDMI-based cockpit monitors by converting ARINC818 to DVI/HDMI, improving visual compatibility and clarity without the need for pricey replacements.

Avionics systems can access the extensive ecosystem of DVI/HDMI display devices by adopting ARINC818 to DVI/HDMI conversion, assuring optimum compatibility and facilitating seamless integration between avionics and visual display systems.

It’s a game-changing move that crosses the gap and unleashes ARINC818’s full potential in the DVI/HDMI industry.

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator

HIGHLIGHTS

  • Quick customization as per customer Interface Control Document (ICD)
  • Transmission Medium: Optical Fibre or 50-Ohm/75-Ohm/100- Ohm/150-Ohm Copper Medium
  • Video-Input/Output: On-board SFP/Twinax/Coax  & DVI Connectors
  • Supports both progressive & interlaced video up to Full HD @ 20/25/30/50/60fps.
  • No need for a Host Computer to configure Input/Output Ports.
  • Power consumption <6W
  • Supported Configurations:
    • ARINC 818 to DVI Conversion
  • Rugged body and compact design

DVI/HDMI to ARINC818 Converter

The conversion of DVI/HDMI to ARINC818 becomes essential when it comes to connecting ARINC818-capable avionics systems to ARINC818 Video Processing devices un-accessible.

DVI/HDMI Video source is a popular visual interface that is available in both consumer and professional applications.

The DVI/HDMI to ARINC 818 Converter opens the space for the integration, testing, and validation of aviation video systems with common consumer electronics.

The preferred method for connecting DVI/HDMI sources like Laptops, PCs, etc to a conversion module that will provide the high-quality ARINC818 Video.

The conversion procedure entails bridging the chasm between the consumer electronics and aviation industries.

While DVI/HDMI uses a separate signaling structure and provides features like HDCP (High-bandwidth Digital Content Protection) for copyright protection, ARINC818 runs on a distinct protocol.

Protocol translation must be handled by specialized hardware or software to guarantee compatibility between the two formats.

A real-world case study demonstrates the effectiveness of converting from DVI/HDMI to ARINC818.

A manufacturer of aircraft display or Avionics video processing equipment wishes to connect its ARINC818-based video system to demonstrate the latest in cockpit display technology at an aviation fair, The manufacturer uses a DVI/HDMI to ARINC818 converter to seamlessly combine their cutting-edge aviation video system with the DVI/HDMI source, attracting exhibition guests and showcasing ARINC818’s capabilities in a consumer-focused environment.

Airlines can improve in-flight entertainment outside of expo presentations by tying ARINC818-based Display systems to DVI/HDMI-capable Laptops/PCs.

Through this integration, travelers may watch top-notch movies, watch live TV, and access interactive content.

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator
HIGHLIGHTS

  • Accepts standard compliant DVI / HDMI Input and converts to high-quality ARINC 818 video Outputs.
  • Low Latency DVI/HDMI to ARINC818 Video Conversion
  • ARINC 818 link rate and resolution are configurable depending upon the customer’s requirement.
  • No need for a Host PC for configuration
  • Video format conversion, resolution selection, frame rate & timing generation
  • Supports Configurable video resolution

SPECIFICATIONS

  • Quick Customization as per the customer Interface Control Document(ICD)
  • Transmission medium: Optical fiber or 50-Ohm/75-ohm/100-ohm/150-ohm Copper medium
  • Video type: Progressive or Interlaced Full HD @20/25/30/50/60fps
  • Cooling Method: Conduction cooled
  • Operating temperature: Commercial Grade
  • 1x HDMI Receiver
  • 1x ARINC818 Transmission (Optical or Copper)
  • 1x Debug UART
  • Rugged aluminum body and compact design
  • Video Input: DVI or HDMI format Video Input
  • Video Output: ARINC 818 Digital Video Output
  • Input Power: 5.0 V DC Adaptor
  • User control – Selection Switch for Resolution configuration
  • Auto video signal detection
  • Holding: Tabletop and Wall mount / Rack mount option

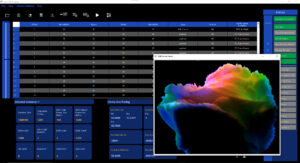

ARINC818 Video-Protocol Analyzer and Generation (AVAG)

The ARINC818 Video-Protocol Analyzer and Generation (AVAG) unit has many benefits and makes it possible to perform sophisticated video analysis.

By converting, you may improve video quality evaluation, carry out real-time performance monitoring, and acquire a comprehensive understanding of video data.

Numerous advantages for video analysis are offered by AVAG. By detecting artifacts, examining color correctness, evaluating pixel-level changes, and locating compression problems, it first enables improved video quality assessment.

This level of analysis guarantees ideal video performance and aids in problem-solving.

Additionally, ARINC818 Video Generation enables thorough video data analysis. You may check for problems with timing, signal integrity, error rates, and other crucial parameters in ideal conditions.

This thorough investigation assists in locating potential bottlenecks, enhancing system performance, and ensuring regulatory compliance.

You’ll need a compatible AVAG device that supports ARINC818 input and has the required video analysis capabilities to start the assessment.

Make sure that the device can handle the appropriate video resolutions and frame rates as well as the needs of your unique application.

The AVAG device and the ARINC818 source must be connected during conversion using the proper cables and connectors.

Set up any necessary parameters for precise analysis and configure the AVAG device to receive and analyze the ARINC818 video stream according to the manufacturer’s instructions.

The advantages of AVAG are illustrated through a real-world case study from the aviation sector. A manufacturer of aircraft reported sporadic problems with the video quality of their cockpit display systems, which used ARINC818 for video transmission.

They were able to examine video data in real-time, spot signal integrity problems, and find compression artifacts by connecting AVAG and assessing various parameters related to ARINC818 Protocol.

As a result, they were able to optimize their video processing pipeline, which led to better visual and system stability.

Numerous examples of AVAG devices and their capabilities can be found on the internet, showcasing how the ARINC818 Video-Protocol Analysis and Generation device provides detailed video analysis, real-time monitoring, and valuable insights for optimizing video performance.

ARINC818 to DVI/HDMI & Video Protocol Analyzer/Generator

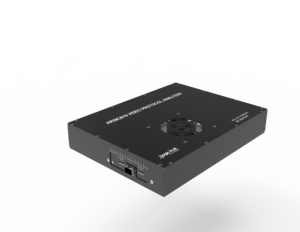

ARINC818 Video-Protocol Analyzer and Generation (AVAG)

HIGHLIGHTS

  • Analyze the ARINC818 Protocol Format data at the FC-Packet level (ADVB Frame Level) and verify the protocol implementation
  • User-configurable for multiple link rates
  • Complex, multilayer triggering (up to three levels) within payload or Object 0
  • Graphical User Interface (GUI) for MMI
  • Raw trace data capture up to 128MB, with save and load capability
  • Dockable user-friendly interface
  • Real-time monitoring of link status, such as Sync Link; SoF Detect
  • Auto-input video detection
  • Live view of the video via DVI/HDMI monitor
  • Runs under Windows based Operating Systems

SPECIFICATIONS

  • Transmission Medium: Optical Fibre or 50-Ohm/75-Ohm/100- Ohm/150-Ohm Copper Medium
  • Video-Input/Output: On-board SFP/Twinax/Coax  & DVI Connectors
  • Supports both progressive & interlaced video up to Full HD @ 20/25/30/50/60fps.
  • DVI/HDMI to ARINC818 Conversion for loopback tests
  • Self-generated ARINC818 Video Pattern generation for ideal condition analysis.
  • ARINC818 to DVI/HDMI conversion for Live view of the ARINC818 Video.
  • USB 3.0 Interface for sending captured ADBV data frames to host PC for further analysis

ANALYSIS FEATURES

  • User-configurable profiles
  • Many trigger options.
  • Decoded container details
  • Decoded FC frame details
  • Search features
  • Color-coded raw data
  • Detailed video framing timing
  • Detailed line timing

Conclusion

In conclusion, ARINC818’s conversion to DVI, HDMI, and ARINC818 Video-Protocol Analysis and Generation expands the protocol’s adaptability and opens a world of possibilities.

Following our examination of the key ideas presented in this essay, keep the following in mind:

With its strong features and advantages, ARINC 818 is a trusted interface in the aviation and defense sectors. To meet needs, conversion to other formats may be required in some circumstances.

For applications that require high-resolution graphics and extensive compatibility, converting ARINC818 to DVI/HDMI offers seamless integration with a variety of display devices.

Utilizing the capabilities of consumer-grade equipment is made possible by the conversion of DVI/HDMI to ARINC818, opening the door to immersive displays, integration, and control possibilities.

It provides a link between consumer gadgets and aircraft, improving user experience and streamlining connectivity.

For Analyzing ARINC818, AVAG offers a potent substitute that considers the rapidly changing technical environment.

For those looking for improved video processing capabilities, its cutting-edge features and improved performance make it an appealing option.
