PCIe Gen6 is more than just an upgrade; it represents a significant transformation in how enterprise IT manages the increasing requirements of modern workloads.
More speed, lower latency, and rock-solid scalability are essential for today’s infrastructures, from real-time data analytics and hyperscale cloud operations to artificial intelligence and machine learning.
PCIe Gen6 makes all of that feasible by enabling seamless performance across servers, storage devices, and accelerators of the next generation.
CIOs are more concerned with creating a foundation that is ready for the future than they are with speeding up data acquisition.
To make this shift easier, Logic Fruit Technologies offers a PCIe Gen6 Controller IP that’s already proven on FPGA and designed with flexibility in mind.
Whether you’re building on ASICs or evolving an existing platform, this IP takes the complexity out of the transition.
It’s pre-validated, built to scale, and helps enterprises roll out Gen6 solutions faster, with less risk and more confidence.
Why CIOs Should Care About PCIe Gen6
Solid-state drives (SSDs) are essential parts of both consumer and business computer environments, and the release of PCIe Gen 6 significantly improves their performance.
Most PCIe Gen 6 SSDs use an x4 lane configuration and can reach speeds up to 64 GT/s.
PCIe Gen 5 provided maximum speeds of 32 GT/s under the same arrangement, which is a significant boost.
What’s new with PCIe Gen 6?
To meet and surpass the demands of the present and future computing environments, PCIe Gen 6 introduces several ground-breaking capabilities.
Here are a few notable developments that were made:
- PAM-4 Signaling
- 64 GT/s Transfer Rate
- Forward Error Correction (FEC)
- Improved Power Efficiency
- Advanced Data Transfer and Scalability
- Enhanced Encoding Mechanisms
- Security Enhancements
Advantages of Upgrading to Gen 6
There are several benefits to switching to PCIe Gen 6, especially for applications that require low latency and high throughput. These consist of:
Enhanced Data Transfer Speeds: With PCIe Gen 6, data transfers take a lot less time, which allows for faster load times, faster data processing, and increased system efficiency.
Large-scale simulations, real-time data analytics, and sophisticated gaming systems are examples of data-heavy applications where this is essential.
Increased Bandwidth: High-performance computing (HPC), AI and machine learning, and 8K video streaming are examples of new technologies that benefit greatly from PCIe Gen 6’s quadrupled bandwidth capacity.
Future-Proofing Infrastructure: Adopting PCIe Gen 6 guarantees compatibility with upcoming technologies that will utilize this new standard, conserving investment and preventing early obsolescence for businesses wishing to construct or modernize their IT infrastructure.
Improved Power Efficiency: In addition to improving performance, PCIe Gen 6 also brings more effective signaling and encoding methods that lower power consumption per bit transferred, supporting the ideas of green computing.

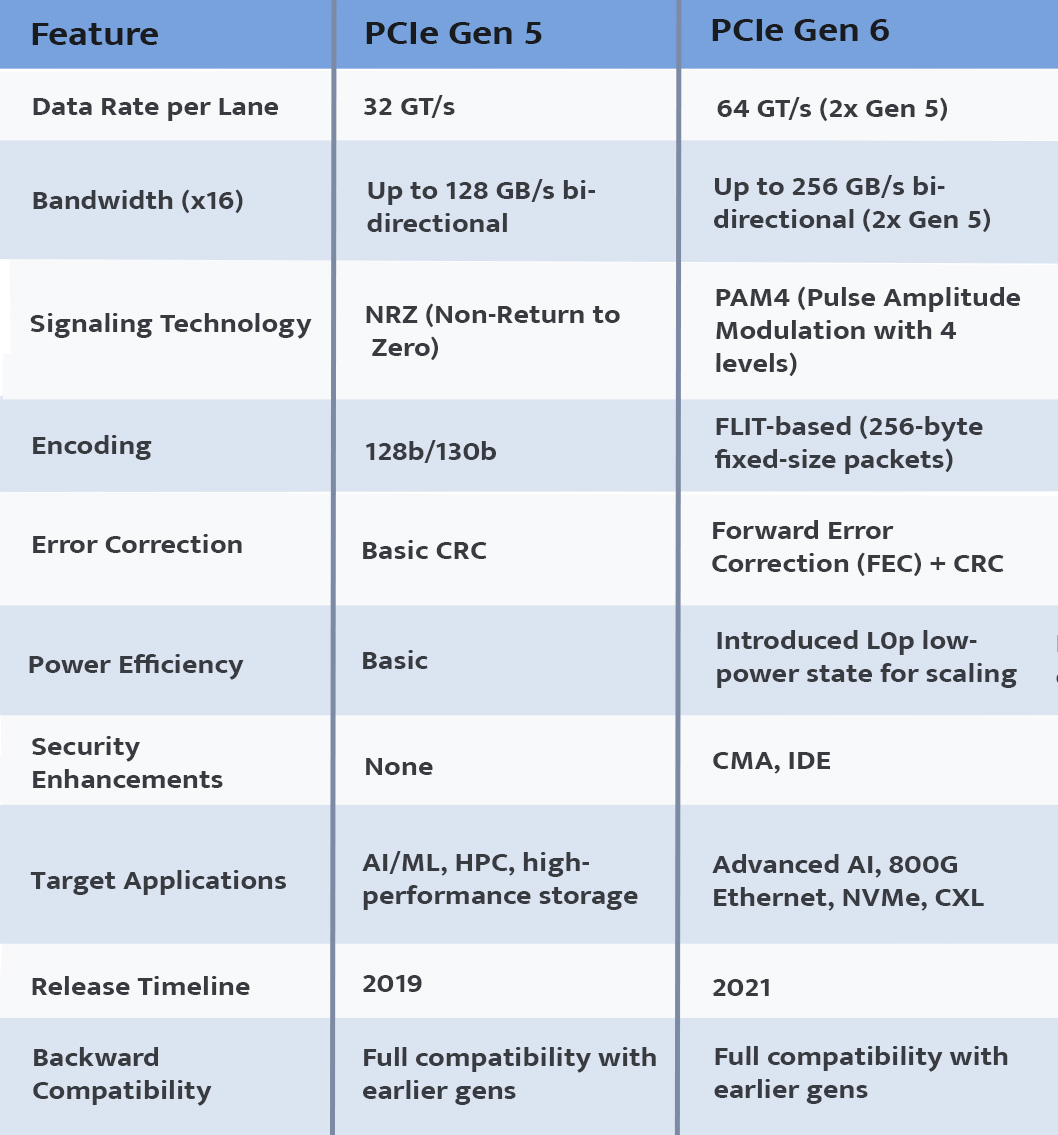

Comparison of PCIe Gen 5 and PCIe Gen 6
Key Checklist to Evaluate PCIe Gen6 Infrastructure and Teams
It’s critical to evaluate your organization’s current state before implementing PCIe Gen6. This checklist provides an easy-to-use framework for assessing deployment strategy, team preparedness, and infrastructure.
Infrastructure & Hardware
Infrastructure planning is crucial since PCIe Gen6 incorporates PAM4 signaling, which affects lane arrangement and thermal design.
In addition to using flit mode, Gen6 doubles data transmission rates above PCIe Gen5, necessitating precise hardware preparation.
Keeping PCIe Gen5 and PCIe Gen4 compatible is still crucial because many businesses migrate gradually.
Team Capabilities & Tools
Engineering teams need to be trained on new signal integrity problems and validation techniques because PCIe Gen6 uses PAM4 signaling.
In order to allow Gen6 enumeration, error handling, and compatibility, BIOS and firmware changes are frequently required.
Integration, Testing & Monitoring
In enterprise settings, a phased rollout strategy, from pilot to full deployment, is common to reduce risk.
To guarantee steady operation, performance measurements, temperature profiles, and error correction behavior must be continuously monitored.
It is advised that during the transition, backward compatibility with PCIe Gen5 and PCIe Gen4 devices be maintained.
Use Cases – How Enterprises Are Adopting PCIe Gen6
PCIe Gen 6 is a significant progress in PCIe technology because of these improvements, and it is essential for meeting the increasing data rate requirements of applications like high-performance computing, machine learning, and artificial intelligence (AI).
As a basic technology for the upcoming generation of computing advances, PCIe Gen 6 can manage more data with more efficiency and reliability.
To meet the processing demands of today’s AI workloads, hyperscale data centers are under tremendous pressure.
These artificial intelligence workloads are ravenous for memory bandwidth, storage, and processing power. Consequently, they require:
- Massive datasets can be efficiently transferred between application-specific computing devices using high-speed interconnects to maximize compute cycles and power.
- Communication with low latency to coordinate calculations in scale-up fabrics.
- Scalable architectures are necessary to handle the growing data throughput and model sizes.
- Exceptionally quick storage to enable AI applications with quick network and storage-to-GPU data connection
Conclusion
PCIe Gen6 integration into the company’s IT infrastructure is now required for CIOs who are dedicated to preserving operational excellence and a competitive edge.
PCIe Gen6’s backward compatibility and enhanced performance features enable enterprises to add new capabilities while safeguarding their current investments.
With a systematic approach to assessment and implementation, businesses can use Gen6 benefits now and create a solid basis for data-driven innovations in the future.
Logic Fruit PCIe Gen6 Controller IP: Accelerate Your Enterprise Upgrade
A PCIe Gen6 Controller IP from Logic Fruit Technologies is FPGA-proven and endorsed by Tier 1 industry leaders.
With multi-channel packet processing, improved RAS features, and lightning-fast data speeds of up to 64GT/s per lane, this controller guarantees data integrity and streamlines system integration.
Its adaptable design makes it a flexible solution for data center applications, AI/ML, compute-intensive workloads, and high-speed networking.
It supports both Root Port and Endpoint roles. Businesses can effectively future-proof their infrastructure with optimized FPGA use cases and a seamless migration route to ASIC/SoC hardening.
Logic Fruit offers access to prior generation PCIe IPs and porting support to facilitate integration, allowing for smooth transitions and a variety of deployment choices.
By downloading the datasheet below, CIOs who want to remain ahead of the curve with PCIe Gen6 can examine the comprehensive features and capabilities of this IP. Download PCIe Gen6 Controller IP Datasheet
