ARINC 818-2 IP CORE
Logic Fruit Technologies has designed & implemented ARINC 818-2 Transmitter & Receiver IP Core supporting multiple line rates up to 8.5 Gbps.
Main Features and Benefits
High-Speed Performance
Compliant with ARINC818-2 specification, supporting data rates up to 8.5 Gbps.
FC-AV Based
Built on the reliable Fiber Channel Audio Video protocol.
Efficient Transmission
Point-to-Point Video/Data support using 8B/10B Encoding over serial link.
Hybrid Connectivity
Compatible with both optical and electrical link options.
Advanced Framing
Supports line-segmentation and
line-synchronous transmission.
Robust Diagnostics
Receiver error & status reporting with user-data support.
Why ARINC 818 Matters for Modern Avionics
Fast, dependable, and coordinated video communication is essential for modern avionics. Beyond what older interfaces can manage, ARINC 818-2 provides a real-time, uncompressed protocol designed for the aerospace industry.
Industry Challenges
- Legacy video interfaces create complex integration bottlenecks
- High development costs for custom video solutions
- Latency issues disrupt real-time mission operations
- Lack of standardization across avionics platforms
Our Solution
- ARINC 818-2 IP core enables seamless, standardized video transmission.
- Logic Fruit’s IP core cuts development time by 80% and slashes costs.
- Sub-millisecond latency for fast, reliable avionics communication.
- ARINC 818-2 IP delivers reliable performance on all major FPGAs.

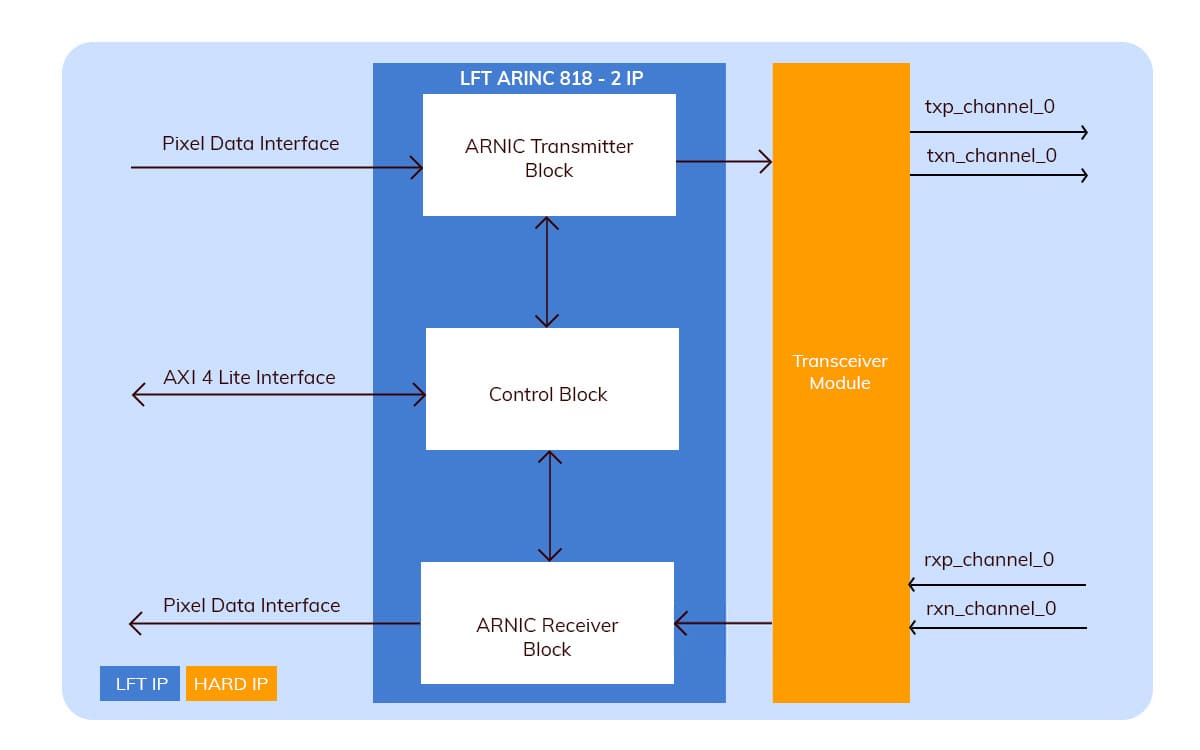

ARINC 818-2 IP CORE Block Diagram
Certifications & Compliance
With proven compliance and industry-recognized certifications, our ARINC 818-2 IP core is built for aerospace-grade performance.
CEMILAC
Certified
DO 178 / DO 254
Certified
AS9100
Certified
Applications and Use Cases
Commercial Aviation
In-flight entertainment systems, cockpit displays, and passenger information systems.
Use Cases
- Seat-back entertainment
- Cockpit multi-function displays
- Cabin management systems
Military & Defense
Mission-critical video systems for defense applications and military aircraft.
Use Cases
- Tactical displays
- Surveillance systems
- Mission computers
Surveillance Systems
High-resolution video transmission for security and monitoring applications.
Use Cases
- Airport security
- Border surveillance
- Critical infrastructure monitoring
Get Your Datasheet
Download the datasheet to get detailed information about our ARINC 818-2 IP core. Inside you’ll find:
- Performance data and specifications
- Supported features and configurations
- Technical details to help with integration
Download ARINC 818-2 IP CORE Datasheet
Frequently Asked Questions
Our IP core is tested and validated on major FPGA families including Xilinx Zynq, Kintex, and Virtex series, as well as Intel Cyclone, Arria, and Stratix families. We provide optimized implementations for each platform.
Yes, our ARINC 818 IP Core is CEMILAC certified and supports DO-254 compliance requirements. It meets all ARINC 818-2 specification requirements for safety-critical aerospace applications.
The IP core supports various video formats up to 8K resolution with frame rates up to 120 FPS. It handles standard avionics video formats and provides configurable parameters for custom requirements.
The IP core is designed for plug-and-play integration. With comprehensive documentation, reference designs, and our support team, most customers achieve initial integration within 1-2 weeks.
We provide complete documentation including integration guides, reference designs, simulation models, and dedicated technical support throughout your development cycle.
