Main Features and Benefits
The 16-Channel IF Recorder offers 16 input channels with 16-bit resolution and a sampling rate of 200 MSPS, configurable to 70 MHz IF frequency. It features 8 output channels for simultaneous playback, expandable SSD storage for 4 hours of recording, and a user-friendly GUI for streamlined control and analysis.
- 16 input channels, 16-bit resolution, 200MSPS sampling rate.
- 70 MHz IF frequency but can be configured to any value depending on the requirement.
- 8 output channels with simultaneous playback facility for all.
- Output resolution of 16-bit and output sampling rate is 200MSPS, can be interpolated to 400,800 MSPS.
- 4 SATA SSD, expandable to 8; allows continuous recording for 4 hours.
- Comprehensive GUI for easy control of acquisition, record and playback functions.
- FFT display with spectrum analyzer for ADC channel data (selectable).
- CIC filter for decimation.

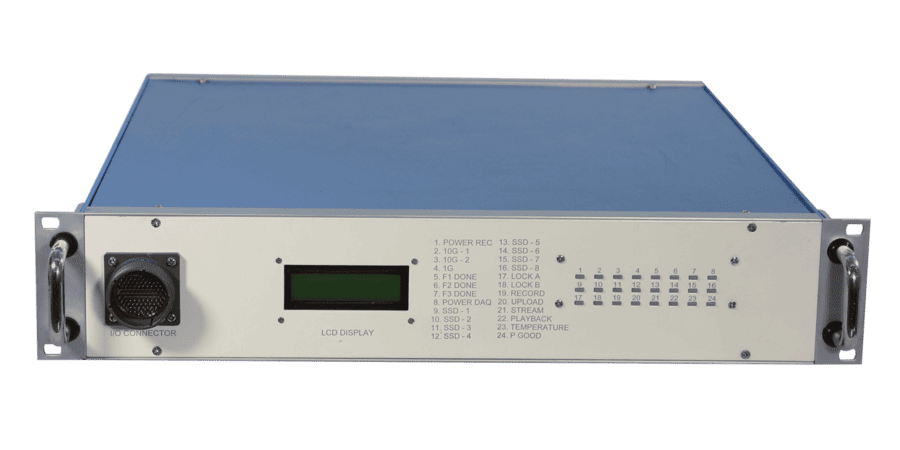

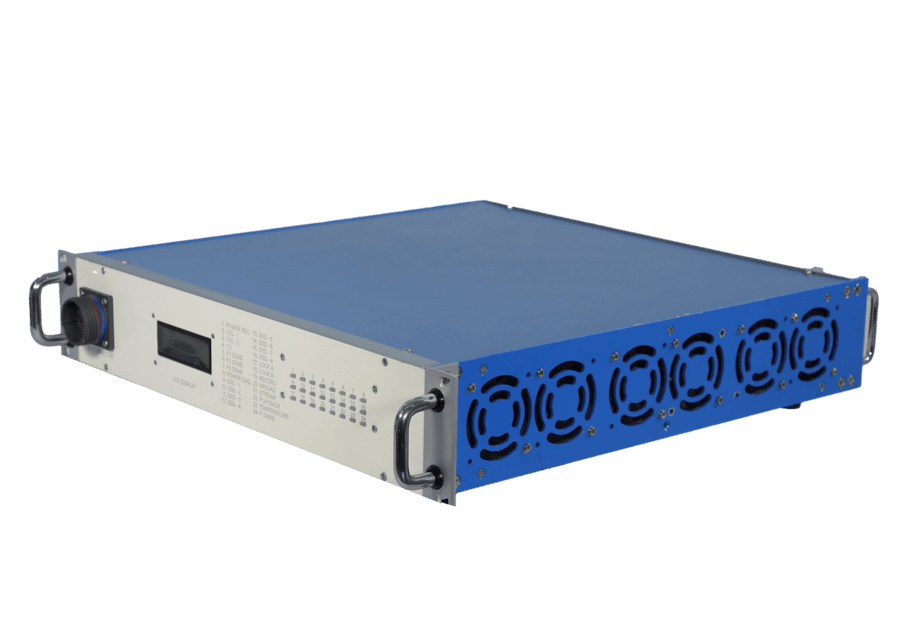

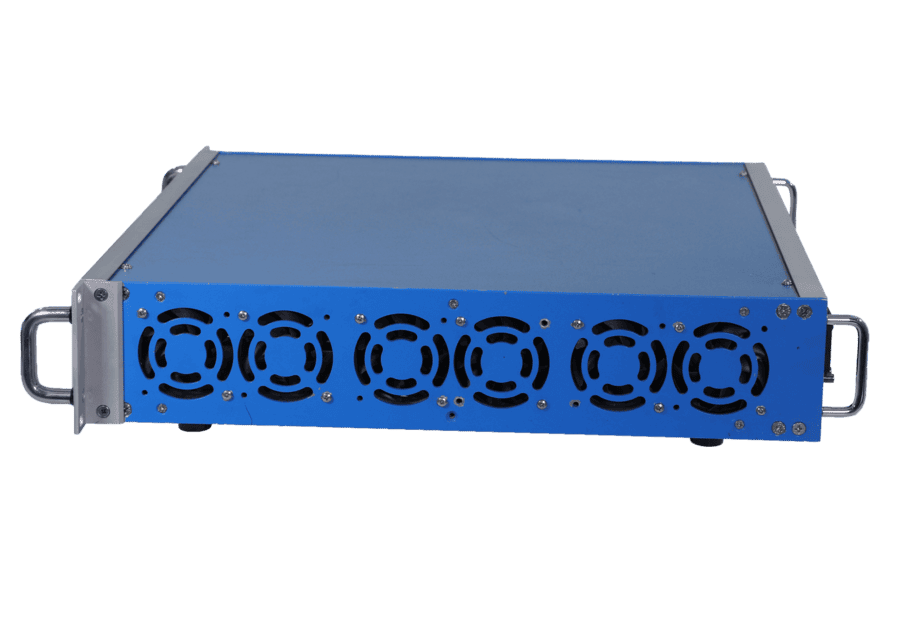

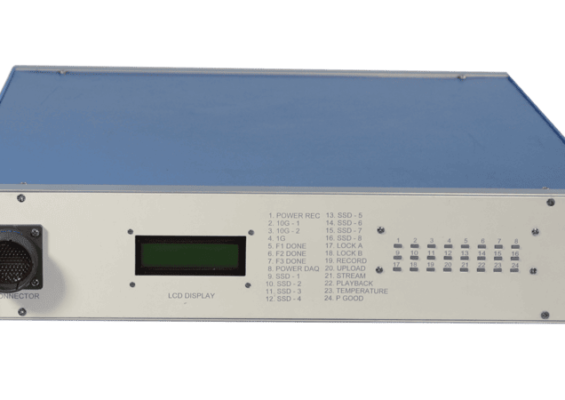

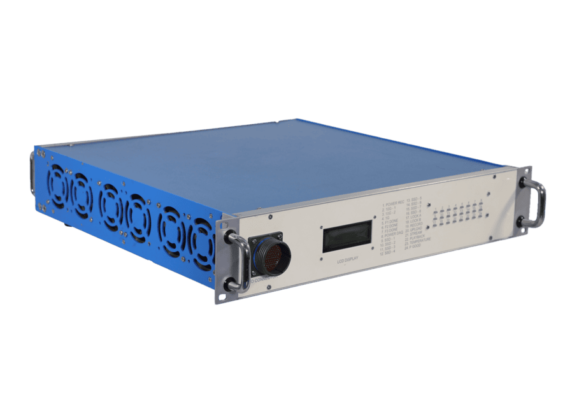

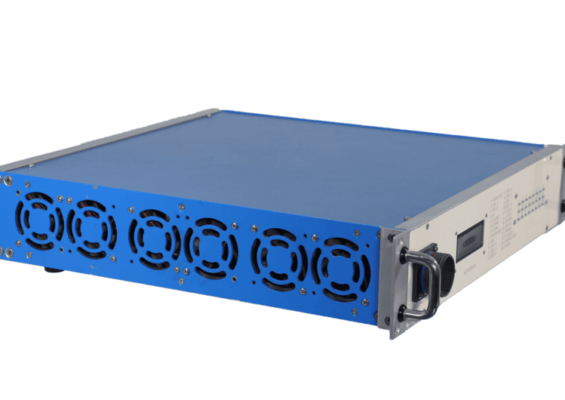

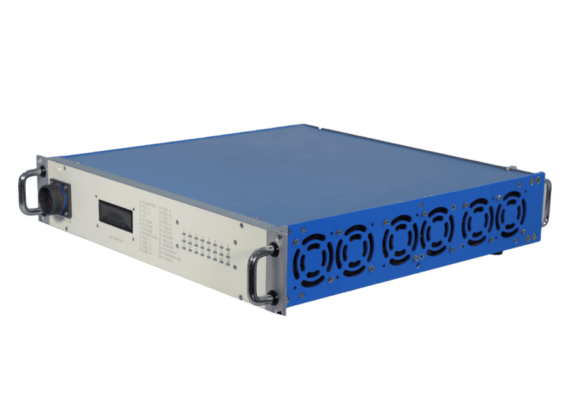

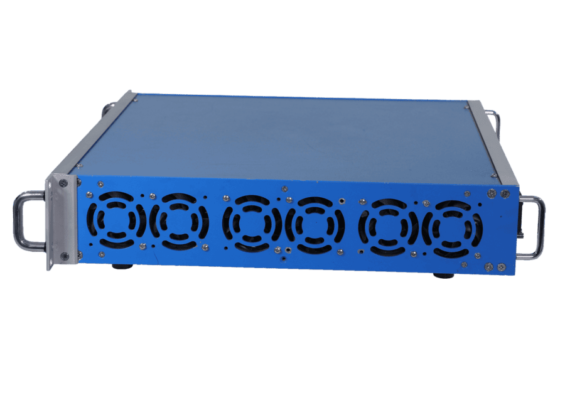

- Compact 19” rack mountable unit.
- Two 10G interfaces, that can be used in raw streaming of 16 channels ADC/DDC data.
- We can load custom waveforms for playback from the host PC to the IF recorder.
WATCH THE VIDEO
IF Recorder And Playback System
IF recorder and playback system is built around a recording with 16 Channel and playback facility for 8 output channels and ample storage for continuous recording for satellite communication and telemetry applications.
- It supports internal and external clock
- The Storage Capacity of this IF Recorder and Playback system is 8 TB
